Steel Tile Roof Panel Roll Forming Machine With Hydraulic Control System For Automotive
Description:
We manufacture Roll Forming machine,European roller shutter machine,C & Z purlin machine,Roof & wall forming machine,
Octagon tube machine,Guardrail forming machine,Tile roof forming machine,Door frame forming machine,Down pipe forming
machine,Slitting line,Sandwich panel line,Floor decking forming machine,Cable tray forming machine,uncoiler and recoiler,
Double-layer forming machine,Ridge cap forming machine,Cut to length line,Shearing and press brake machine,T-bar forming
machine,roller shutter slat forming machien,etc.
Main Component:
- Decoiler ---------------------------------------------- 1 Unit
- Feeding guide ---------------------------------------- 1 Unit
- main roll forming machine ---------------------------- 1 Unit
- Hydraulic cutting device ------------------------------ 1 Unit
- Hydraulic Station ------------------------------------- 1 Unit
- PLC computer control -------------------------------- 1 Unit
- Output table ----------------------------------------- 1 Unit
Working Flowing
Decoiler -- Feeding -- Roll Forming -- Cut-to-length -- Output
Applications:
| Construction | Food Services | Lawn & Garden | Shelving |
| Automotive | Fencing | Lighting | Store Fixture |
| Display Industry | Furniture | Material Handling | Sporting Goods |
| Farming | HVAC | Mining | Transportation.etc |
Specifications:
| Suitable to process | colored steel plate, galvanized board |
| Width of the plate | 1220mm |
| Rollers | 18groups |
| Rolling material | Forging steel 45# |
| Rolling galvanization thickness | 0.3-0.7mm |
| Material of the cutting blade | Cr12mov |
| Dimensions | Approx9m*1.8m*1.5m |
| Power | 5.5kw |
| Thickness of the plate | 0.3-0.7mm |
| productivity | 10m-15m/min |
| Diameter of the roller | 76mm |
| Weight | About 7T |
| Voltage | 380V 50Hz |
| Processing precision | Within 1.00mm |
| Equipment components | Man-made uncoiler,roll forming machine, Compture control system Hydraulic control system Press foming cutting and stamping |
| Transportation | One complete equipment need one 40 feet container to hold |

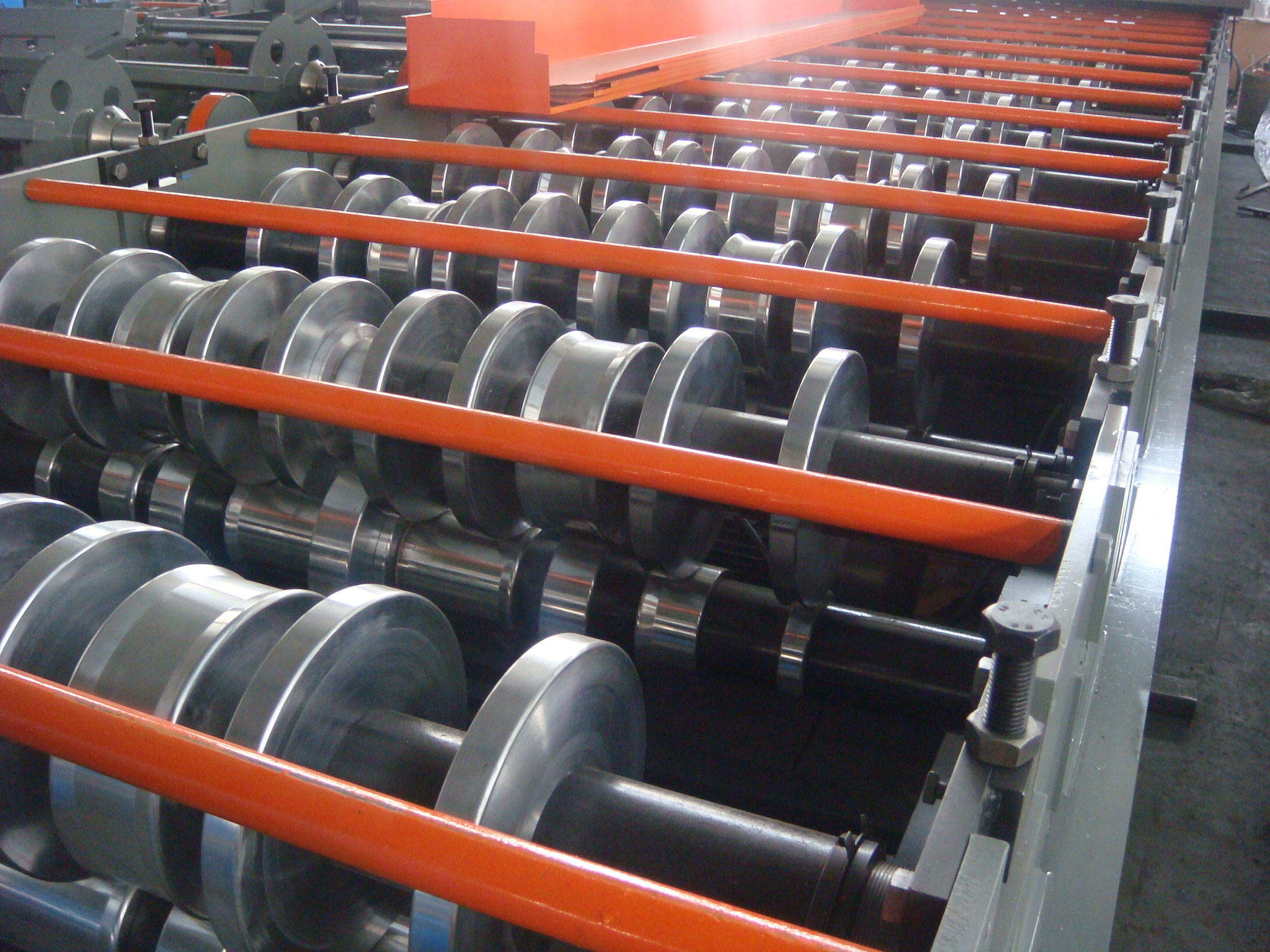

Machine pictures:
