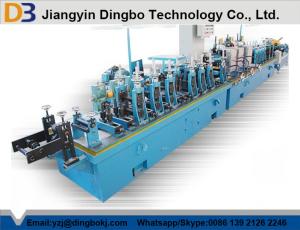

Galvanized Steel ERW Tube Mill Line For Furniture Tube Welding , Speed 80 M / Min
Description
The High frequency galvanized steel welded square and round pipe making machine is intended for manufacturing of round pipe of Φ38mm-Φ102mm with thickness of 1.0mm–4.0mm from cold-rolled and hot-rolled coil strip by means of enclose tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.Finished product will be of round, square or rectangular pipe.

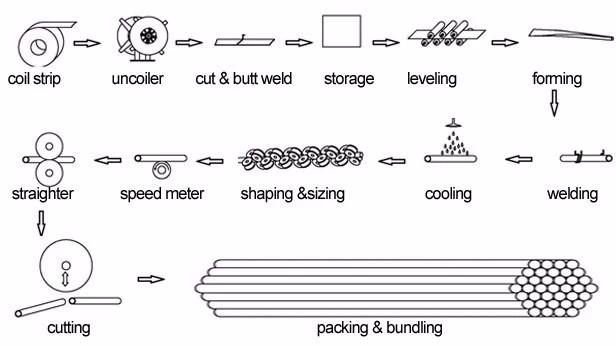

Flow chart
Technical parameter
Raw material:Carbon steel
Width of strip steel: 120-320mm
The diameter of the pipe:38-102mm
The thickness of the strip steel: 1.0-4.0mm
The length of the pipe: 3-12m
Equipment processing speed: 20-120m/min
Main components
| Serial No. | Commodity & Description | Quantity |
| 1 | Manual un-coiler | 1 set |
| 2 | Feeding guiding | 1 set |
| 3 | Roll forming machine | 1 set |
| 4 | Cooling system | 1 set |
| 5 | Straighten device | 1 set |
| 6 | Miter Saw Cutting | 1 set |
| 7 | Output table | 1 set |
| 8 | Controlling system (including cabinet) | 1 set |

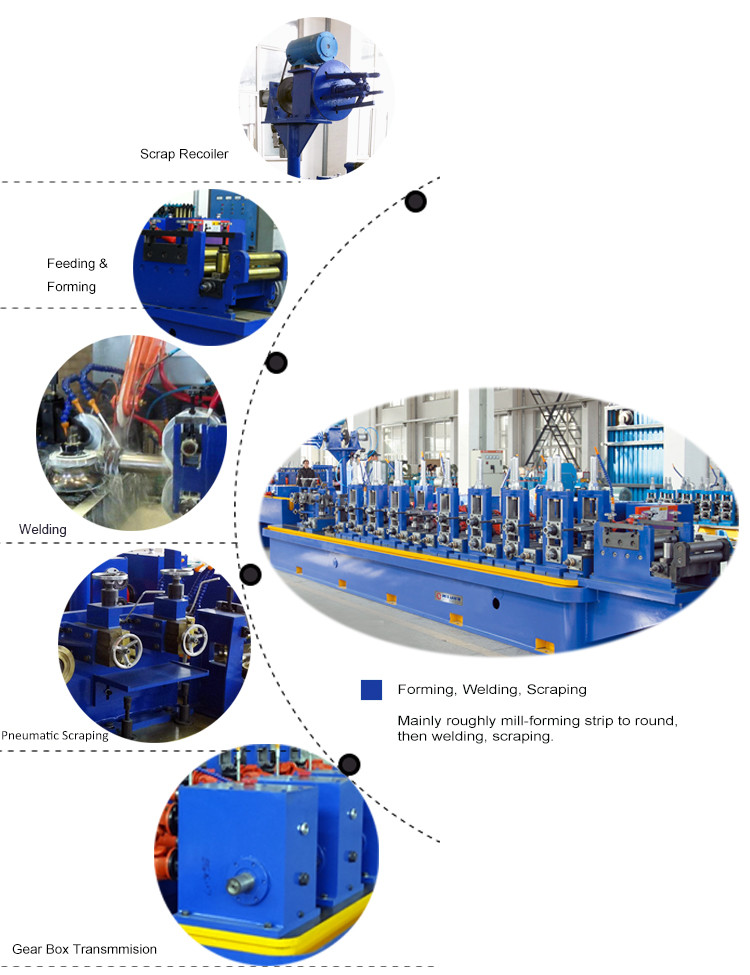

Machine pic
FAQ
1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.
2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.
3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.
5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.
7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.
8.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.
9.Can we arrange shipment?
Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
