140 - 840mm Width Continual Punching Mould Steel Sheet Forming Machine For Cable Ladder
Main features
This cable tray production line ,the different sizes through the replace punching moulds to complete. Forming machine is combined and adjustable, one set of combined rollers complete all cable tray products.

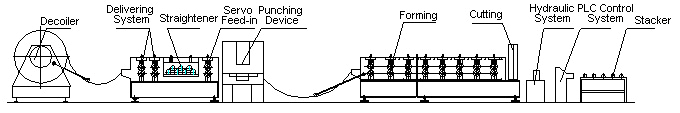

Working flow
Technical parameters
1.Suitable to process: Color steel
2.Width of the plate: 312mm
3.Rollers: 14 stations
4.Dimensions: 7.3*1.2*1.5m
5.Power: 5.5kw
6.Roller material: high grade 45# steel
7.Thickness of the plate:0.3-0.6 mm
8.Voltage: 380V 50Hz 3phases
9.Material of the cutting plate: Cr12
10.Hydraulic: 40#
11.Processing precision: Within 1.00mm
12.Control system: PLC
Machine components
| Name | Unit | Qty |
| Main Roll Forming Machine | Set | 1 |
| Manual Coiler | Set | 1 |
| Feeding & Leveling | Set | 1 |
| Control System | Set | 1 |
| Cutting Device | Set | 1 |
| Output Table | Set | 1 |

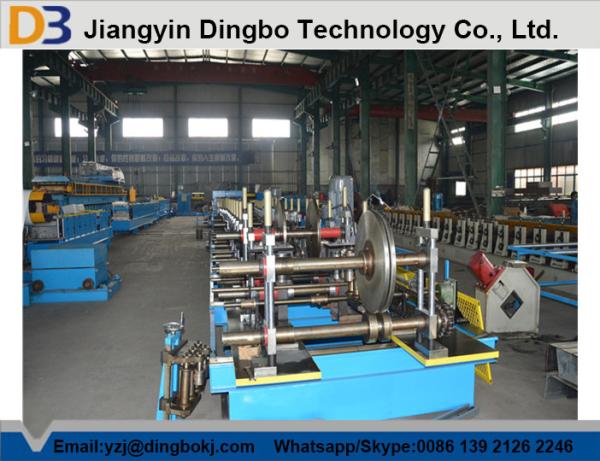

Machine picture

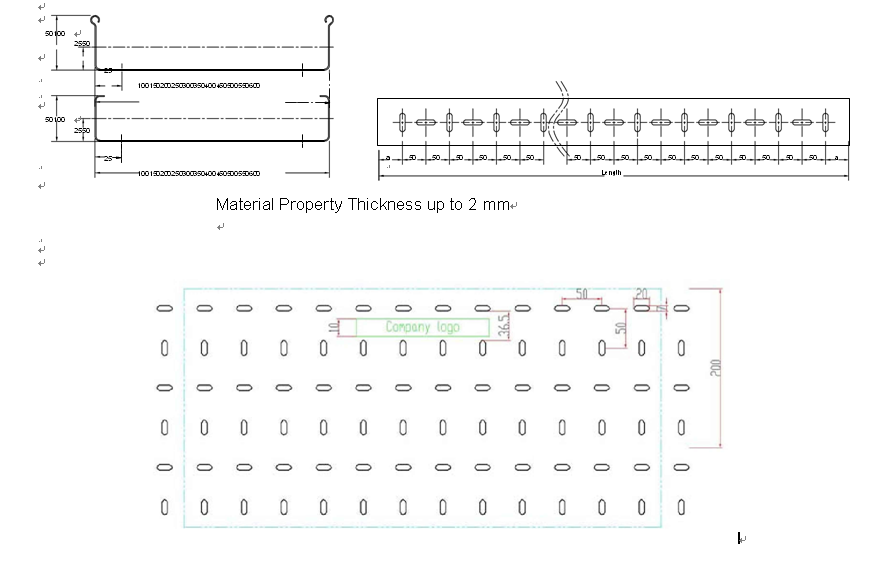

Profile drawing
Our services
Advanced machinery, well trained workers.
More than 20 years experience in roll forming machine industry.
Unique designed, good Germany quality, competitive China price.
Full process of roll forming machine solution.
Shipment arrangement available.
After-sales services for overseas installation and commissioning
FAQ
1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.
2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.
3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.
5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.
7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.
8.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.
9.Can we arrange shipment?
Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
