2.0mm Thickness Cable Tray Roll Forming Machine With 16 Steps Forming Station

Name: 20mm Thickness Cable Tray Roll Forming Machine With 16 Steps Forming Station
Brand: Dingbo
Price: 1 USD

Quality 2.0mm Thickness Cable Tray Roll Forming Machine With 16 Steps Forming Station wholesale

Brand Name : Dingbo

Model Number : DBCT

Certification : ISO CE SGS

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 sets /month

Delivery Time : Shipped in 30-70 days after payment

Packaging Details : Export standard sea package with film and steel

Production Capacity : 10-15m/min

Power(W) : 78 KW

Voltage : 380V 50Hz

Control system : PLC ( Panasonic)

Cutting blade material : Cr 12 Mov

Product name : 2.0mm Thickness Cable Ladder Roll Forming Machine With 16 Steps Forming Station

Contact Now

2.0mm Thickness Cable Ladder Roll Forming Machine With 16 Steps Forming Station

Main feature

This cable ladder roll forming machine consists of 5 tons uncoiler with servo feeding system, straighten device, high speed punching device, forming machine with individual station, gearbox transmission device, hydraulic cutter, computerized control cabinet and stacker. With full and special experience, we can customize cable tray forming machines or cable roll forming production lines according to customers’ profile drawing and specifications.

Working flow

Auto Decoiler – 9 Rollers Leveling – Servo Feeding -- Punching machine -- Oriented – Transportation – 8 Holes Punching -- Main Forming -- Cutting -- Run out table

Main parameters

Item	Description
Production Material	Cold rolled or hot rolled and aluminum
Material thickness	1.0mm-2.0mm
Forming speed	10-15 m/min
Number of stations	16 stations
Number of straighten rollers	9 rollers
Number of delivering stations	2 stations
Main motor power	15.0KW
Power of hydraulic station	5.5 KW
Roller material	GCr15 with heat treatment and hard chrome-plated HRC58-62
Shaft diameter	80mm
Shaft material	High-quality steel 45 quenched and tempered after finishing treatment
Servo motor power for delivering	2.2KW
Punching machine capacity	100-200T (depending on real needs)
Punching system	High speed and punching automatically with servo feeding system
Electronic controlling system	Full-frequency PLC controlling system, error of cutting length ≤ 2mm
Cutting	Hydraulic cutting after formed

Machine components

Name	Unit	Qty
Manual Decoiler	Set	1
Punching Machine	Set	1
Feeding & Leveling	Set	1
Main Roll Forming Machine	Set	1
Control System	Set	1
Cutting Device	Set	1
Output Table	Set	2

Our services

Advanced machinery, well trained workers.

More than 20 years experience in roll forming machine industry.

Unique designed, good Germany quality, competitive China price.

Full process of roll forming machine solution.

Shipment arrangement available.

After-sales services for overseas installation and commissioning.

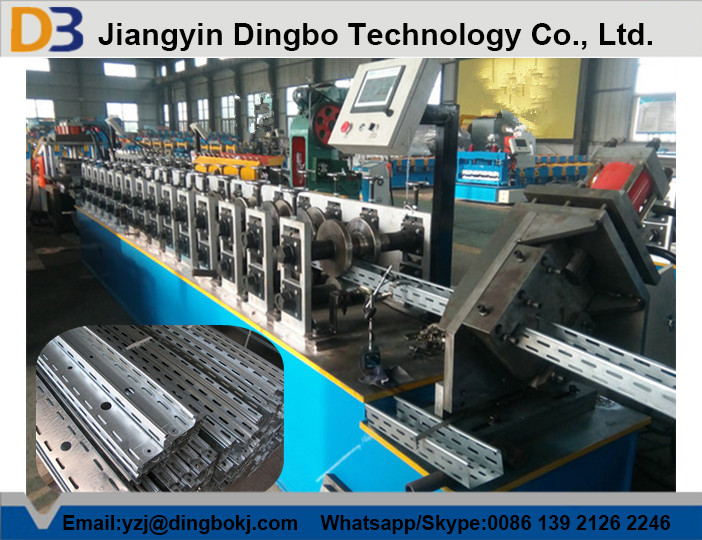

Machine picture

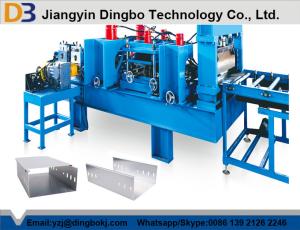

2.0mm Thickness Cable Tray Roll Forming Machine With 16 Steps Forming Station

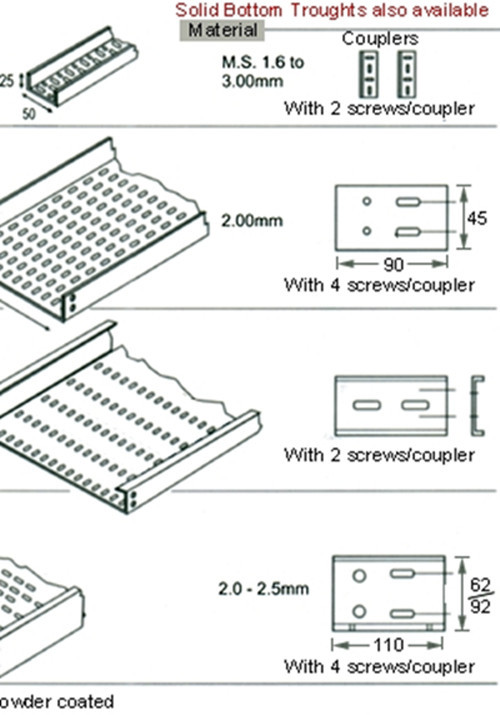

Profile drawing

2.0mm Thickness Cable Tray Roll Forming Machine With 16 Steps Forming Station
