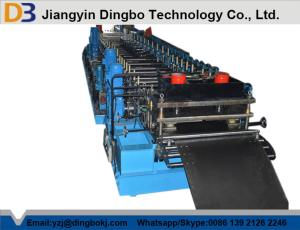

GCr15 Quench Treatment Roller Cable Ladder Roll Forming Machine For 0.8mm - 2.0mm Thickness
Main features
This cable tray forming machine is whole line automatic. This cable tray making machine adopts high quality base frame and gantry type upright structure. All the gantry upright structures are made of cast iron, which makes the machine much stronger. And gear box transmission ensures the machine of fast speed and makes the machine more stable. Fly cutting device cut the roll formed cable tray in a stetted length continuously, no need to stop the machine when cutting.

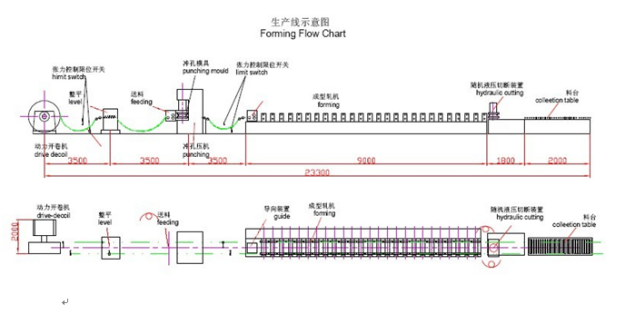

Working flow
Technical parameters
| 1 | Suitable to process | PPGI |
| 2 | Width of the plate | 330mm |
| 3 | Rollers | 17 rows |
| 4 | Dimensions | 6500*800*1300mm |
| 5 | Power | 5.5+3kw |
| 6 | Rolling material | High grade 45# steel (plated chrome on surface) |
| 7 | Thickness of the plate | 0.4-0.8mm |
| 8 | Productivity | 0-12m/min |
| 9 | Diameter of the roller | 60mm |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Cutting plate | Cr12 |
| 12 | Hydraulic | 40# |
| 13 | Processing precision | Within 1.00mm |
| 14 | Control system | PLC control |
Machine components
| 1 | Manual Decoiler | 1 set |
| 2 | Leveler | 1 set |
| 3 | Punching press | 1 set |
| 4 | Main Forming Machine | 1 set |
| 5 | Hydraulic Station | 1 set |
| 6 | Hydraulic Cutting Device | 1 set |
| 7 | PLC Control System | 1 set |
| 8 | Run Out Table | 1 set |
Packaging Picture
Profile Drawing
Our services
Advanced machinery, well trained workers.
More than 20 years experience in roll forming machine industry.
Unique designed, good Germany quality, competitive China price.
Full process of roll forming machine solution.
Shipment arrangement available.
After-sales services for overseas installation and commissioning
FAQ
1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.
2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.
3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.
5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.
7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.
8.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.
9.Can we arrange shipment?
Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
