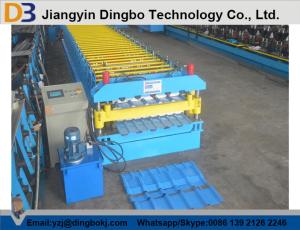

Sandwich Panel Double Layer Roll Forming Machine For Construction Bulidings

Sandwich Panel Double Layer Roll Forming Machine For Construction Bulidings

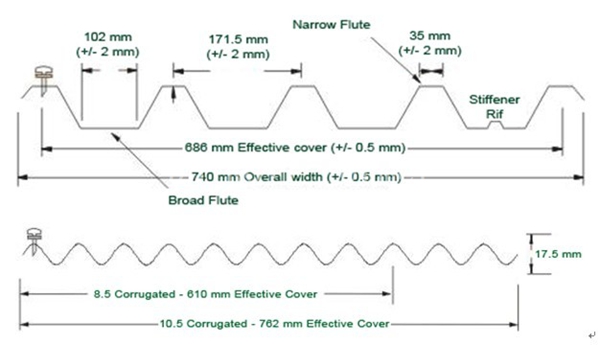

Double Layer Roll Forming Machine can separate produce corrugated roof and IBR roof in one line or similar two profiles.

Application:

The products are widely used in building

Advantage:

available for two profiles roof panel shared one frame, save the cost.

1) Used to produce different roof panels and wall panels
2) Produced panels have such advantages as below:
a) Fine profile
b) Attractive color

c) Agile connecting
d) Slightly curved
3) dual-level roll forming machine
4) We can design and manufacture different type of it to hit your particular profiles

Technical Parameters:

1) Material Spec: Colored Steel Sheet; Galvanized Steel Sheet
2) Thickness of Coil Sheet: 0.3-0.8mm
3) Main Motor Power: 5.5KW
4) Forming Speed: 15-18M/MIN
5) Hydraulic Station Power: 5.5 KW
6) Quantity of Stands: 17 Stands
7) Hydraulic Pressure: 10-12Mpa
8) Controlling System: PLC
9) Index Error of Length: 10M ± 2mm
10) Total Weight: About 80000KGS
11) Voltage: 380V 3 Phase 60Hz or At Buyers Requirement

Consists:

This line consists of 5 Ton Mechanical uncoiler, guiding and feeding device,
double layer roll former, run out table, PLC controller, hydraulic post-cutting equipment,
electrical control system, hydraulic system, etc.

Working flow:

Uncoiler—Feeding—roll forming--- hydraulic cut to length—output table

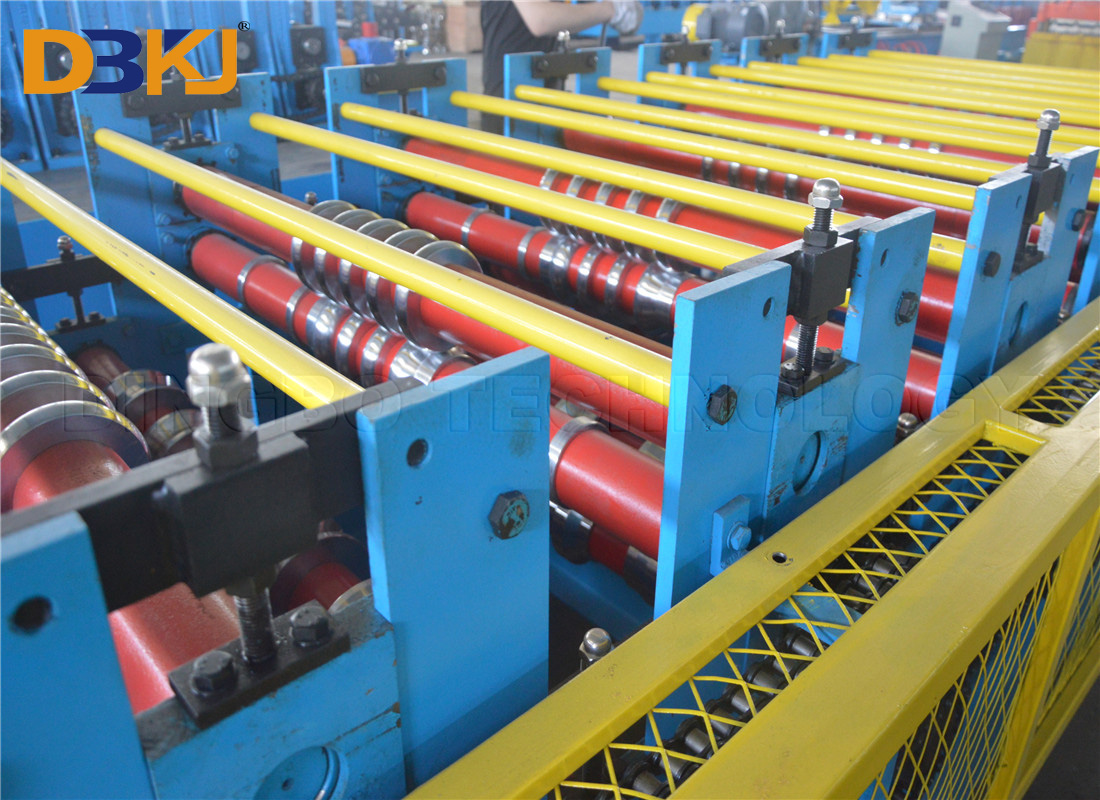

Photo for refer:

roof roll forming machine

metal roof roll forming machine
